Ultrasonic physiotherapy equipment uses ultrasonic energy to produce warm, physicochemical and vibration effects in the human body. It has the characteristics of strong directionality, concentrated energy and strong penetrating power. It applies ultrasonic energy to human lesions and enters human muscles, bone, deep tissue, non-invasive, painless, non-invasive way to reach the lesions, improve the quality of treatment, treatment of certain diseases.

Indications

* Relieve pain

* Acute muscular pain

* Soft tissue contracture

* Soften scars

Technical Specifications

Acoustic working frequency: 1 M Hz±10%

Max output power: 5W

Waveform: Continuous / Pulsed

Max Effective intensity: 1.25W/cm2

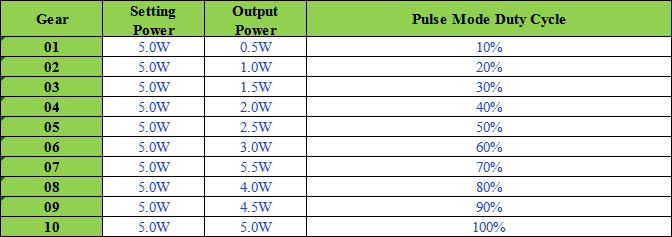

Duty factor: 90%,80%,70%,60%,50%,40%,30%,20%,10%

Effective radiation area: 100px2± 20%

Pulse frequency: 16 Hz±10%

Treatment Time: Freely adjustable, 30 minutes

Beam inhomogeneity ratio: RBN＜8

Beam type: Collimated

Rated output power:
