Ultrasonic physiotherapy equipment （electric stimulation & Infrared combined）uses ultrasonic energy to produce warm, physicochemical and vibration effects in the human body. It has the characteristics of strong directionality, concentrated energy and strong penetrating power. It applies ultrasonic energy to human lesions and enters human muscles, bone, deep tissue, non-invasive, painless, non-invasive way to reach the lesions, improve the quality of treatment, treatment of certain diseases.

  Indications

* Relieves Muscular Pain

*  Reducing muscle spasms

* Joint contracture relief

* Acute muscular pain

* Soft tissue contusion

  Ultrasonic Technical Specifications

Acoustic working frequency: 1 M Hz±10%

Max output power: 5W

Waveform: Continuous / Pulsed

Max Effective intensity: 1.25W/cm2

Duty factor: 90%,80%,70%,60%,50%,40%,30%,20%,10%

Effective radiation area: 4cm2± 20%

Pulse frequency: 16 Hz±10%

Treatment Time: Freely adjustable, 30 minutes

Beam inhomogeneity ratio: RBN＜8

Beam type: Collimated

Rated output power:

  Electric stimulation Technical Specifications

Output Characteristics: Constant Voltage (CV)

Waveform: 2-electrode interference current/ symmetrical current

Output Wave: Bidirectional square wave

IF carrier frequency: 2.5KHz

IF difference frequency: 1~120Hz

IF carrier pulse width: 200uS

IF difference pulse width: 8.3~1ms

Low frequency: 2~100Hz

Output intensity: 0~30V (500Ωload) 25 gears, initial voltage 5V, step 1V

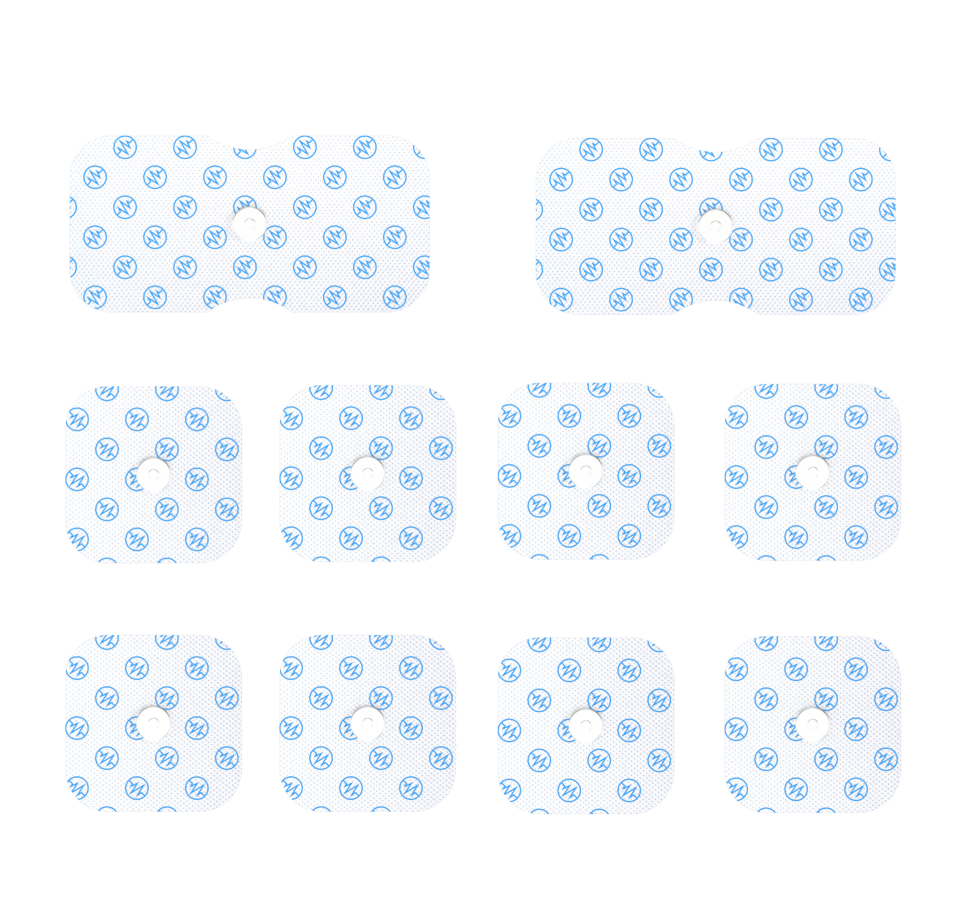

Electrode pad: Type 1:50mm×50mm (R≤500Ωload) Type 2:50mm×100mm (R≤500Ωload)

  Infrared Technical Specifications

Infrared light: 810nm：6 pcs & 610 nm：3pcs

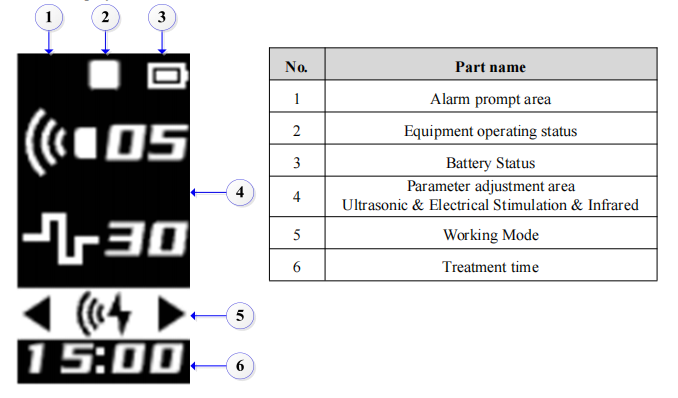

 OLED Display
